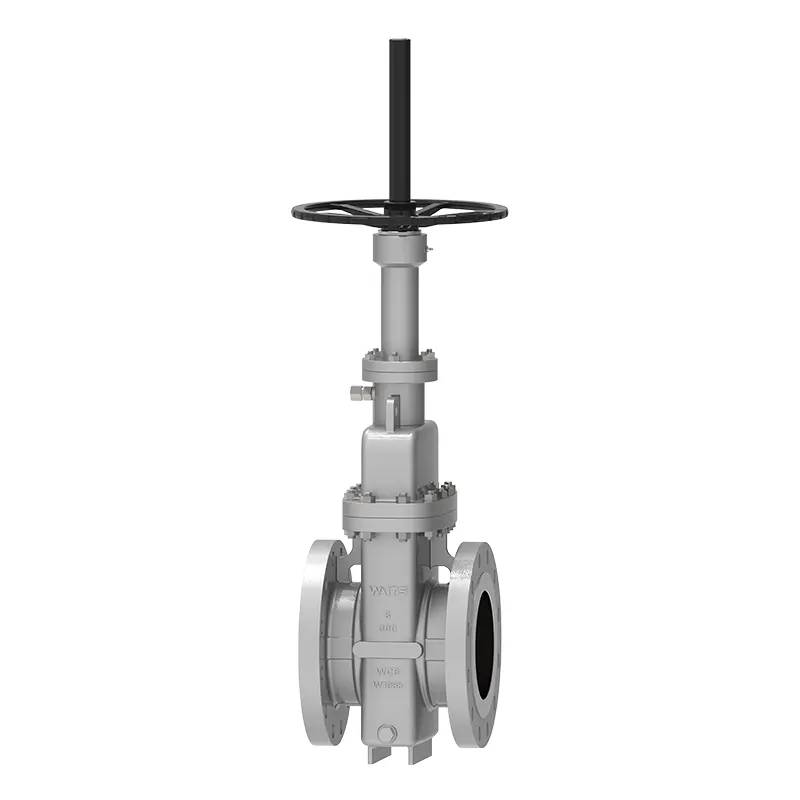

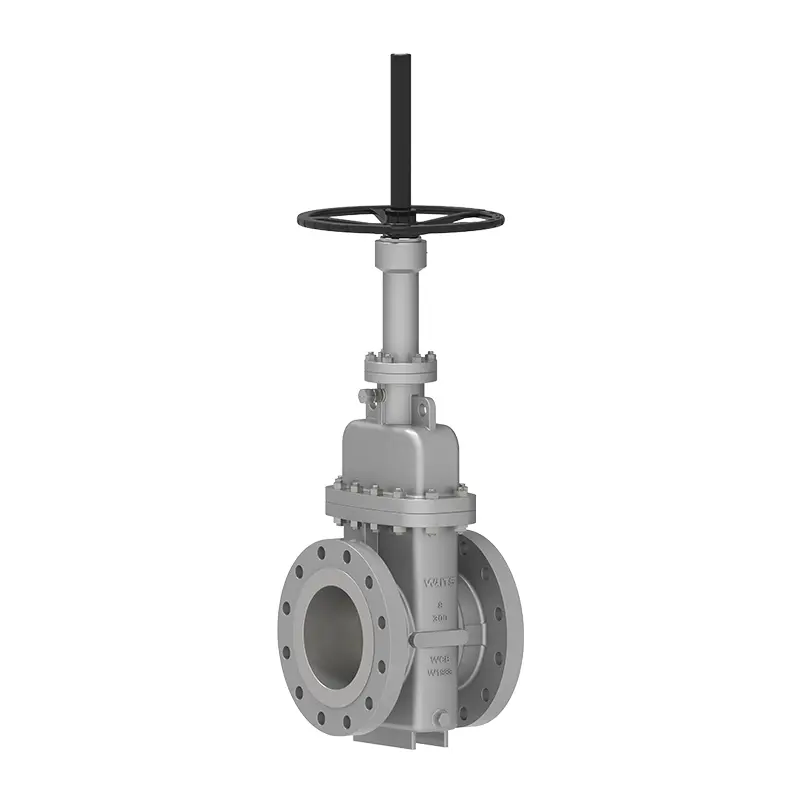

Double disc flat gate valve

Ang Waits Valve Double Disc Flat Gate Valve ay gumagamit ng dalawang mataas na kalidad na mga gate ng kahanay upang magbigay ng pabago -bagong kabayaran sa sealing sa pamamagitan ng mga mekanismo ng tagsibol o wedge. Ang mga detalye ng produktong ito ay maaaring magbigay sa iyo ng iba't ibang mga antas ng seguridad, at maaari mong gamitin ang aming mga produkto nang may kumpiyansa. Ang Waits Valve's Double Disc Flat Gate Valve ay ang balbula para sa iyong Industrial Piping System.

Magpadala ng Inquiry

Paglalarawan ng Produkto

Waits Valve is one of the largest Double Disc Flat Gate Valve industrial suppliers in China, dealing in a variety of materials, including stainless steel, steel, bronze and iron. This product is suitable for various types of media, including gas, liquid and mixtures containing solid particles.

Let Waits Valve introduce this product to you:

Gate valves, also known as knife valves, are used to control fluid flow as you can imagine. Gate valves are used for linear motion and are equipped with a flat closing element that slides into the fluid and closes the fluid. They are one of the most commonly used valves.

Double Disc Flat Gate Valve can cut off mud and other viscous substances such as heavy oil, grease, molasses, varnish, thick cream, etc. However, they can be used for throttling, but excessive throttling will cause wear on the disc and seat of the gate valve.

Implementation Standards-Double Disc Flat Gate Valve
Design Standards	API 600, API6D
Flange Standard	ASME B16.5, ASME B16.47-A/B, EN1092-1/2
Connection	RF, FF, RTJ
Test Acceptance	API 598 EN12266
Structure Length	ASME B16.10
Pressure and Temperature Ratings	ASME B16.34
Fire Test	API607, API6FA
Low Leakage Standard	API 622
Anti-Corrosion Design	NACE MR 0175

Application-Double Disc Flat Gate Valve
Size	DN50~DN1200, NPS2"~NPS48"‌
Pressure Range	PN16~PN100, Class 150~Class 600
Temperature Range	-29℃～121℃‌
Application	Natural gas, oil, steam, water, corrosive liquids, etc.
Drive Mode	Handwheel, bevel gear, electric, pneumatic, etc.
Valve Body/Valve Cover	Forgings: A105, A182 F304, F304L, F316, F316L, F51, F53, B148, A350 LF2, LF3, LF5, Castings: DI A216 WCB, CF3, CF8, CF3M, CF8M, 4A, 5A, C95800, LCB, LCC, LC2
Valve Disc	Forgings: A105, A182 F304, F304L, F316, F316L, F51, F53, B148, A350 LF2, LF3, LF5, Monel, Castings: A216 WCB, CF3, CF8, CF3M, CF8M, 4A, 5A, C95800, LCB, LCC, LC2
Sealing Surface	Main body, main body cladding iron-based alloy, cladding hard-based alloy
Valve Stem	A182-F6a-F304-F316-F51 17-4PH/XM-19 ...
Valve Stem Nut	Copper alloy
Filler	Flexible graphite, graphite asbestos packing, polytetrafluoroethylene...
