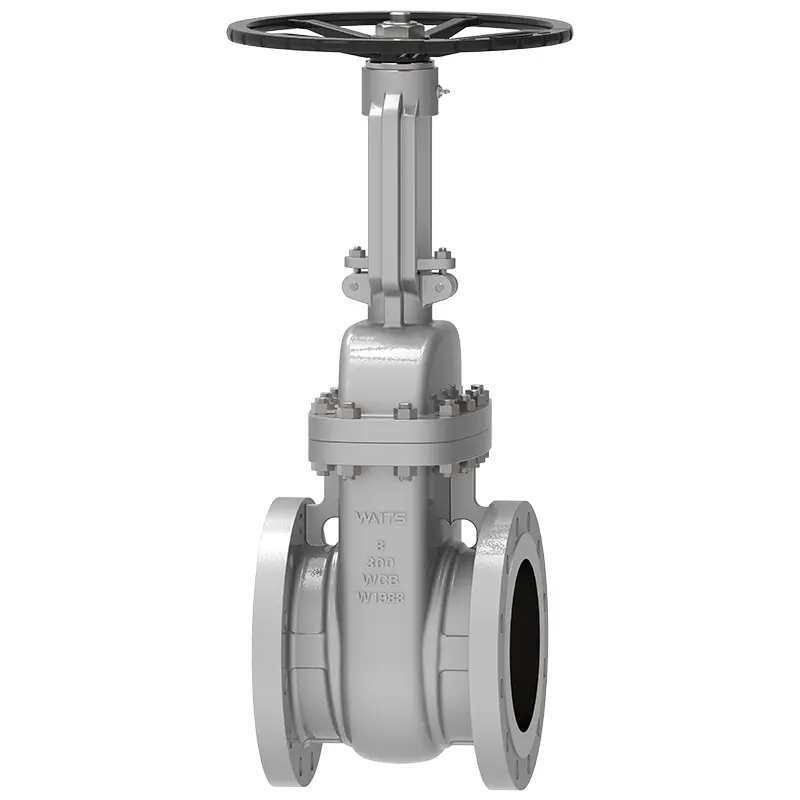

Wedge Gate Valve

Bilang isang malaking tagagawa ng balbula ng gate ng wedge at integrated supplier, ang Waits ay unang itinatag sa US noong 1994 at nagtatag ng isang sangay sa China noong 2008. Mayroon itong dalawang mga base sa produksiyon sa Wenzhou at Tianjin, kung saan ang Wenzhou ay may pandaigdigang punong -himpilan nito. Ang Wedge Gate Valve ay may mahusay na pagganap ng sealing at maginhawang operasyon, at malawakang ginagamit sa mga sistemang pipeline ng industriya. Ang natatanging disenyo nito ay maaaring epektibong makontrol ang daloy ng media, na may lumalaban sa pagsusuot at isang mahabang buhay ng serbisyo.

Magpadala ng Inquiry

Paglalarawan ng Produkto

Wedge gate valve is a high-quality industrial valve. Reasonable price, high cost performance, can save you costs. Excellent quality, excellent sealing and wear resistance, can run stably for a long time. It is widely used in various industrial pipeline systems in Southeast Asia/North America/Europe, and is highly favored in the fields of petroleum, chemical industry, water conservancy, etc. It is a trustworthy pipeline flow control equipment.

Implementation Standards

Design Standard	API 600, DIN, GOST
Flange standards	ASME B 16.5, ASME B16.47, DIN2543, EN1092-1, DIN2545
End Connection	RF, RTJ, BW, etc.
Inspection & Test	API 598, GOST
Face to Face	ASME B16.10, DIN 3202, EN 558-1, GOST
Pressure and temperature ratings	ASME B16.34
Fireproof test	API607, API6FA
Low leakage standards	ISO 15848-1, API 622
Anti-corrosion design	NACE MR 0103, NACE MR 0175

Application

Size	2"-48", DN50-DN1200
Pressure Rating	Class 150-2500, PN10-PN420
Operating Temperature	-60°C~ 450°C
Application range	Tap water, sewage, construction, petroleum, chemical industry, food, medicine, textile, electricity, shipbuilding, metallurgy, energy system, etc.
Operator	HW, Gear, Electric, Pneumatic, etc.
Body Material	Carbon Steel, Stainless Steel, Duplex Stainless Steel, Alloy Steel, Monel, Al Bronze, etc.
Valve plate/valve seat	WCB,WC6,WC9 LCB, CF8, CF8M, CF3, CF3M+D507,STL
Valve stem	F6A F304 F316 F51 F53 Monel K500
Valve stem nut	Copper Alloy
Packing	Flexible graphite, graphite asbestos packing, polytetrafluoroethylene...

Performance Features

1. The gate has two sealing surfaces. The most commonly used is that the two sealing surfaces of the gate form a wedge shape. The wedge angle varies with the valve parameters and is usually 5°.
2. The sealing principle of the wedge gate valve is to achieve sealing by the close combination of the two sealing surfaces on the wedge gate and the two sealing surfaces on the valve body when they are wedged.
3. The wedge gate valve can be divided into a rising stem gate valve (lifting stem gate valve) and a concealed stem gate valve (rotating stem gate valve) according to the different ways in which the valve stem drives the gate to open and close.
4. The wedge gate valve can be divided into an elastic gate valve and a rigid gate valve according to the different gate structure forms.
5. The valve body is cast, the valve body and the valve cover are connected by bolts, and the middle flange is sealed with a winding gasket. Metal rings can also be used for connection when customers have special requirements.
6. The channel is smooth and the flow coefficient is small. The sealing surface is less eroded and eroded by the medium.
7. The sealing surface is made of alloy steel or hard alloy, which has good wear resistance and abrasion resistance.
8. Flexible graphite filler is used, the sealing is reliable, and the operation is light and flexible.
9. The medium flow direction is not restricted, there is no disturbance, and the pressure is not reduced.
10. The shape is simple, the structure length is short, the manufacturing process is good, and the application range is wide.
