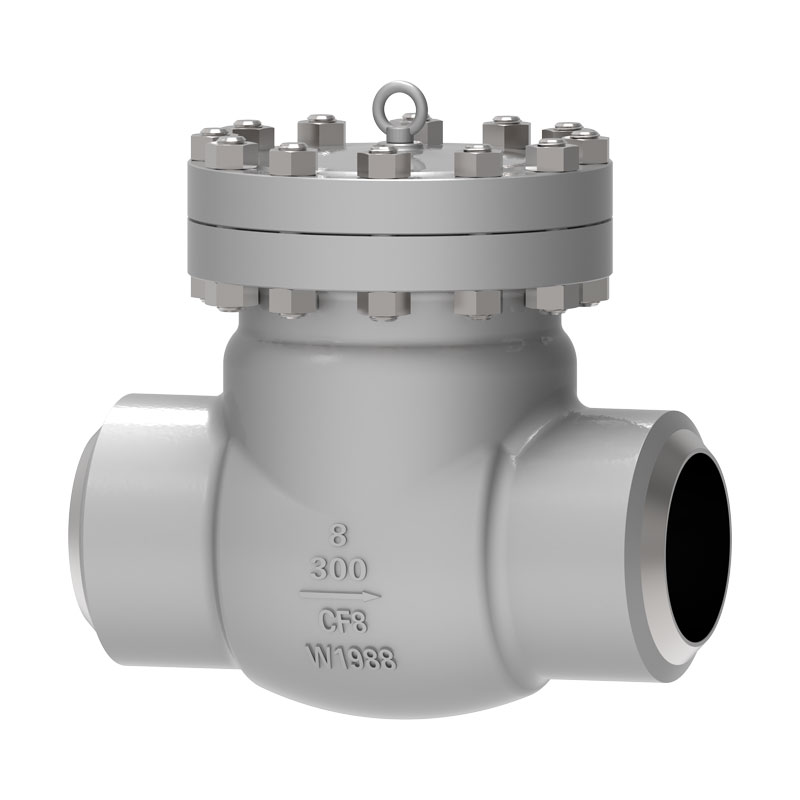

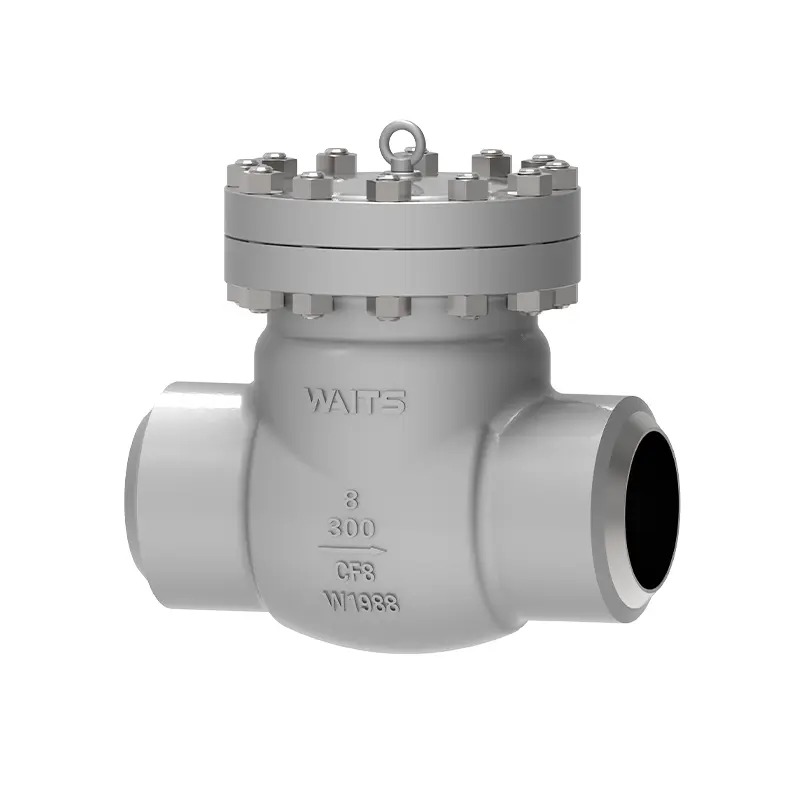

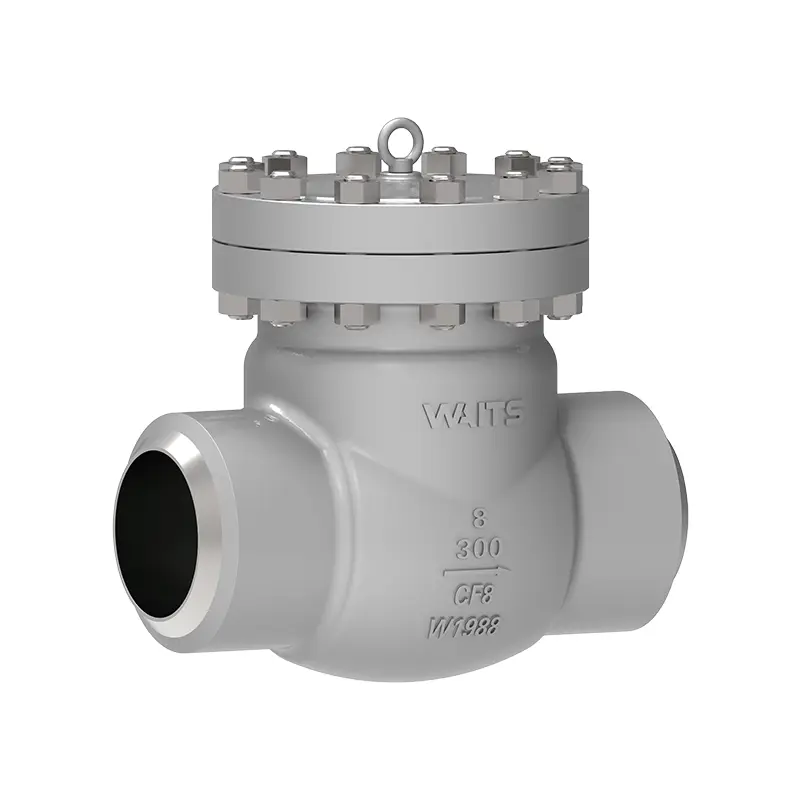

Cryogenic Swing Check Valve

The cryogenic swing check valve is a high-quality product manufactured by Waits Valve, and we can provide you with a competitive price, high cost performance. This product has been well used in Saudi Arabia, the United Arab Emirates, Kuwait, and the northern region. We hope to establish long-term cooperative relations with more customers and create a win-win future.

Magpadala ng Inquiry

Paglalarawan ng Produkto

Ang cryogenic swing check valve ay ginagamit sa management system ng cryogenic liquid storage at transport equipment upang pigilan ang backflow ng cryogenic media. Ito ay may mga katangian ng flexible switching at maaasahang sealing.
Kapag ang daluyan ay dumadaloy sa tinukoy na direksyon, ang balbula disc ay binuksan sa pamamagitan ng puwersa ng daluyan; kapag ang medium ay umaagos pabalik, dahil sa self-weight ng valve disc at ang reaction force ng medium, ang valve disc at ang valve seat sealing surface ay mahigpit na nakasara, at sa gayon ay nakakamit ang layunin ng pagpigil sa backflow ng medium.
Naaangkop na media: methane, liquefied natural gas, hexene, carbon dioxide, likidong ammonia, likidong oxygen, likidong nitrogen, likidong hydrogen at iba pang cryogenic media.

Pamantayan sa Pagpapatupad

Mga pamantayan sa disenyo	BS1868, API602, ASME16.34
Mga pamantayan ng flange	ASME B16.10, ASME B16.25, ASME B16.5
Mga paraan ng koneksyon	RF, RTJ, BW
Pagsubok at pagtanggap	API598, API6D,
Haba ng istruktura	ASME B16.10,
Mga rating ng presyon at temperatura	ASME B16.34,
Hindi masusunog na pagsubok	API607, API6FA
Mababang pamantayan ng pagtagas	ISO 15848-1, API 622
Anti-corrosion na disenyo	NACE MR 0103, NACE MR 0175

Aplikasyon

Sukat	NPS 2″ ~ NPS 24″ DN50~ DN600
Saklaw ng presyon	CL150~ CL500 PN10~ PN250
Temperature range	；-196°C ~ +150°C
Saklaw ng aplikasyon	Pangunahing ginagamit sa ethylene, liquefied natural gas equipment, natural gas LPG, LNG storage tank, receiving base at satellite stations, air separation equipment, petrochemical tail gas separation equipment, liquid oxygen, liquid hydrogen, liquid nitrogen, liquid argon,
Drive mode
Katawan ng balbula/takip ng balbula	A182 F304/F304L/F316/F316L/CF3/CF3M/LF2/LCB/LF3/LCC
Valve plate/valve seat	F316/F304+HF
Balbula stem	F6A F304 F316 F51 F53 Monel K500
Balbula stem nut	Copper Alloy
Pag-iimpake	Flexible graphite, graphite asbestos packing, polytetrafluoroethylene...

Mga Tampok ng Pagganap

1. Small fluid resistance.
2. Cryogenic swing check valve can be installed horizontally or vertically.
3. Mababang temperatura likido nitrogen pretreatment ng mga bahagi.
4. Ang balbula na takip ay gumagamit ng bolt valve cover, welding valve cover, at pressure self-tightening valve cover.
